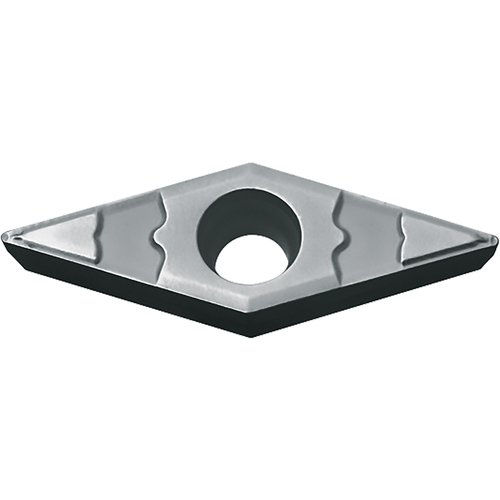

VBMT 331 GP TN60, 1/64″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, TiCN/NbC, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 3/8″ IC × 1/64″ Corner Radius ; TN60 ; Cermet ; | TiCN | NbC |
| Applicable Material | | Steel | | Coating | | TiCN | NbC | |
| Application | External Turning | Copying | Facing | Undercutting | Profiling | Internal Facing | Back Boring | Grade | TN60 |
| Insert Style | VBMT | Fixing Hole Diameter (D1) | 0.1732″ |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 5 Degrees |
| Insert Size | 331 | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 3/16″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | GP |
| Cutting Edge Material | Cermet | Shape | Diamond |
Product Features
| Family Description | Alternate Manufacture # VBMT331GPTN60 | Country of Origin | Japan |
Shipping Info
Package Weight
.1213
