DNMX 432 WF PV720, 1/32″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, TiCN (MEGACOAT NANO), Diamond, Turning Indexable Insert
Turning Insert; Diamond x 1/2″ IC × 1/32″ Corner Radius ; PV720 ; Cermet ; TiCN

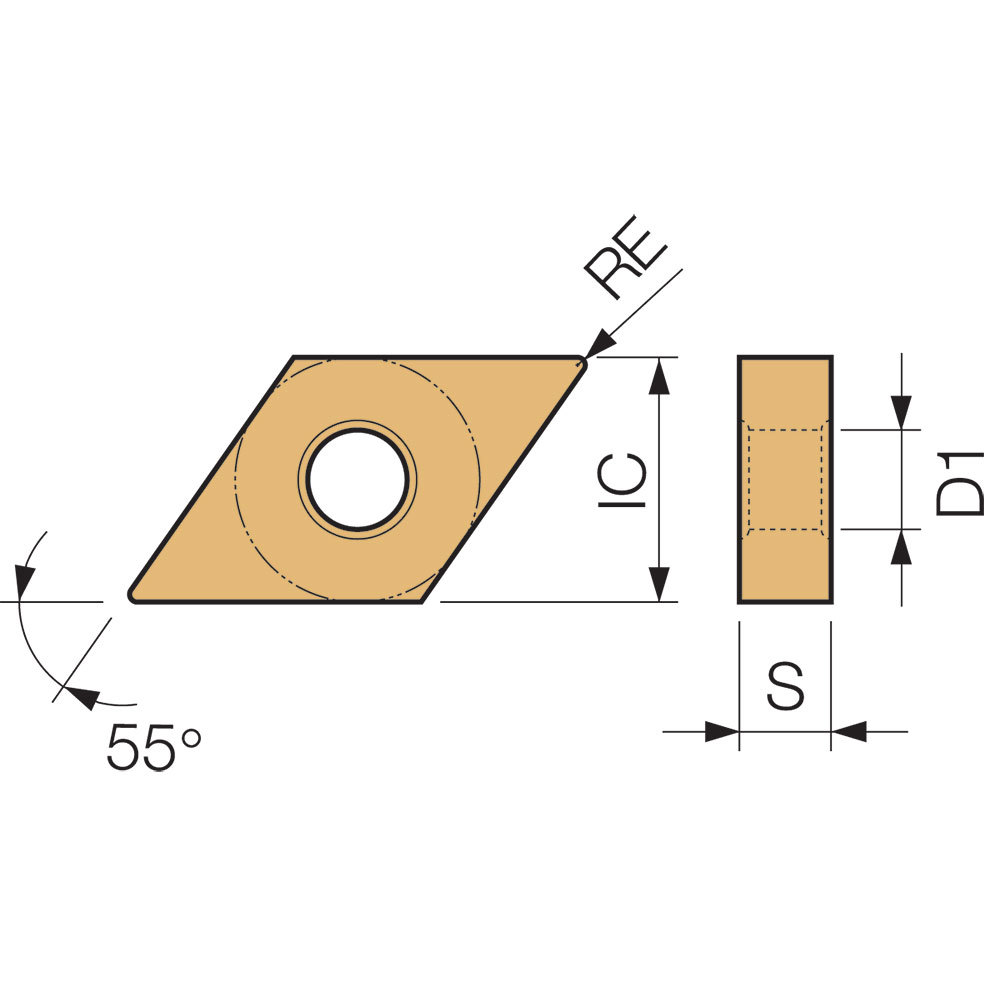

| Applicable Material | | Steel | | Coating | TiCN |
| Application | External Turning | Copying | Boring | Grade | PV720 |
| Insert Style | DNMX | Fixing Hole Diameter (D1) | 0.2031″ |
| Corner Radius (RE) | 1/32″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 432 | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 3/16″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | WF |
| Cutting Edge Material | Cermet | Shape | Diamond |
Product Features
| Family Description | Alternate Manufacture # DNMX432WFPV720 | Country of Origin | Japan |
Shipping Info
Package Weight
.1526
