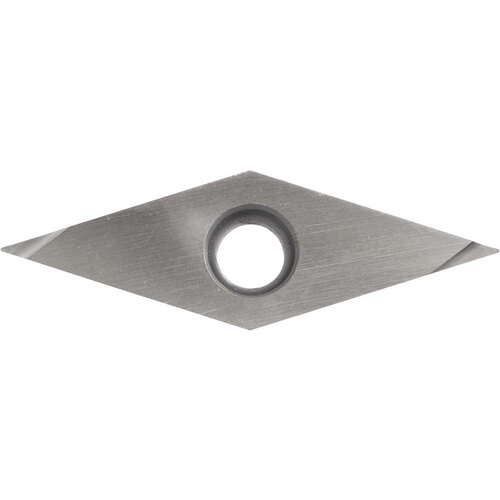

VBGT 2202 F KW10, 0.0039″ Corner Radius, 1/8″ Thick, 1/4″ Inscribed Circle, WC/Co, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 1/4″ IC × 0.0039″ Corner Radius ; KW10 ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Application | External Turning | Copying | Facing | Undercutting | Profiling | Internal Facing | Back Boring | Grade | KW10 |
| Insert Style | VBGT | Fixing Hole Diameter (D1) | 0.1102″ |
| Corner Radius (RE) | 0.0039″ | Clearance Angle Major (AN) | 5 Degrees |
| Insert Size | 2202 | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 1/8″ | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | F |
| Cutting Edge Material | Carbide | Shape | Diamond |
Product Features
| Family Description | Alternate Manufacture # VBGT2202LFKW10 | Country of Origin | Japan |
Shipping Info
Package Weight
0.088
