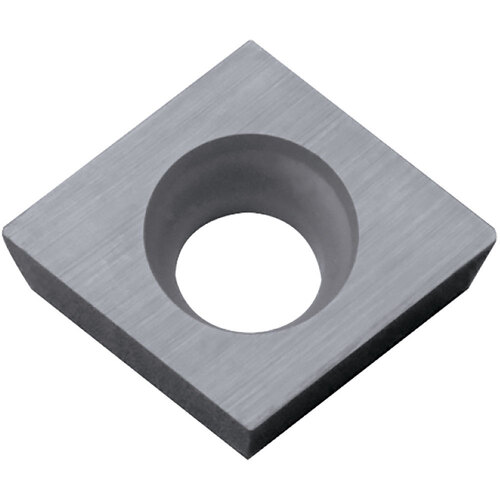

CCGW 21505 KW10 INSERT
Turning Insert; Diamond x 1/4″ IC × 0.0079″ Corner Radius ; KW10 ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Application | External Turning | Facing | Boring | Internal Facing | Grade | KW10 |

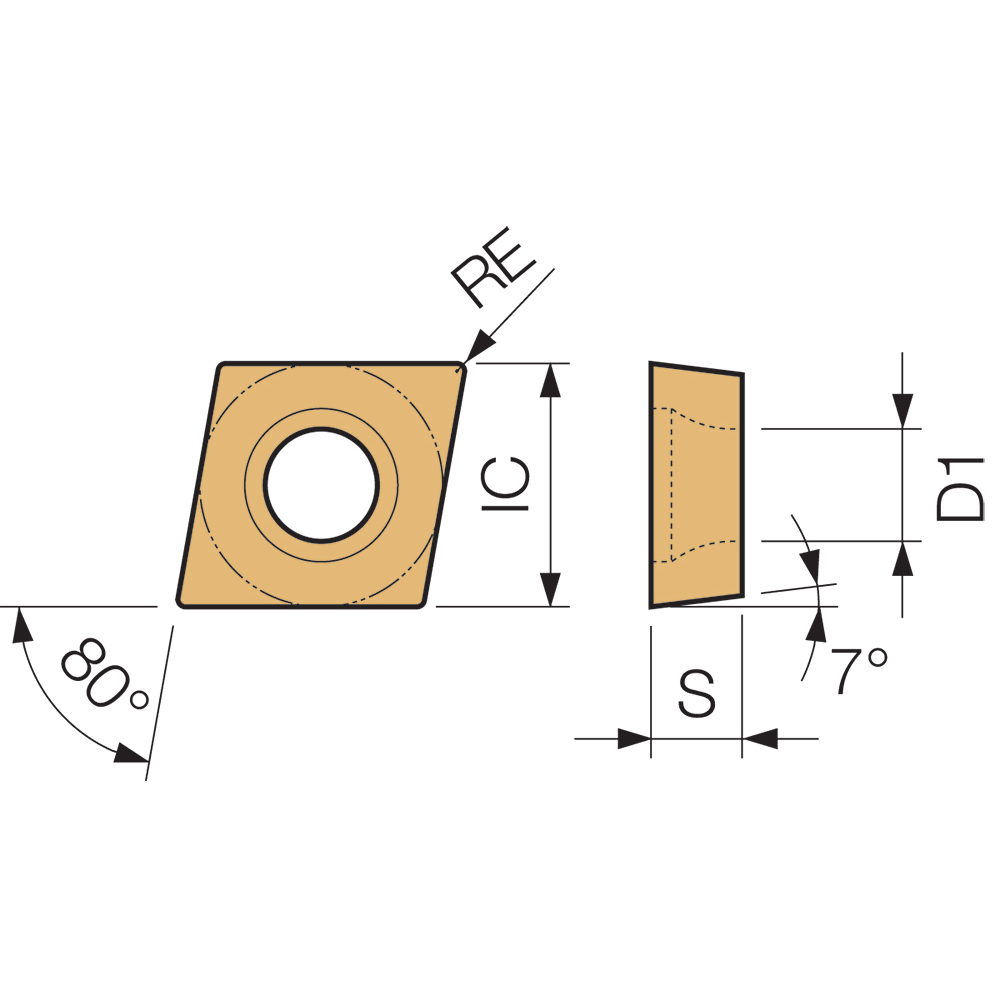

| Insert Style | CCGW | Fixing Hole Diameter (D1) | 0.1102″ |
| Corner Radius (RE) | 0.0079″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 21505 | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 3/32″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/4″ | Shape | Diamond |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Alternate Manufacture # CCGW21505KW10 | Country of Origin | Japan |
Shipping Info
Package Weight
.0518
