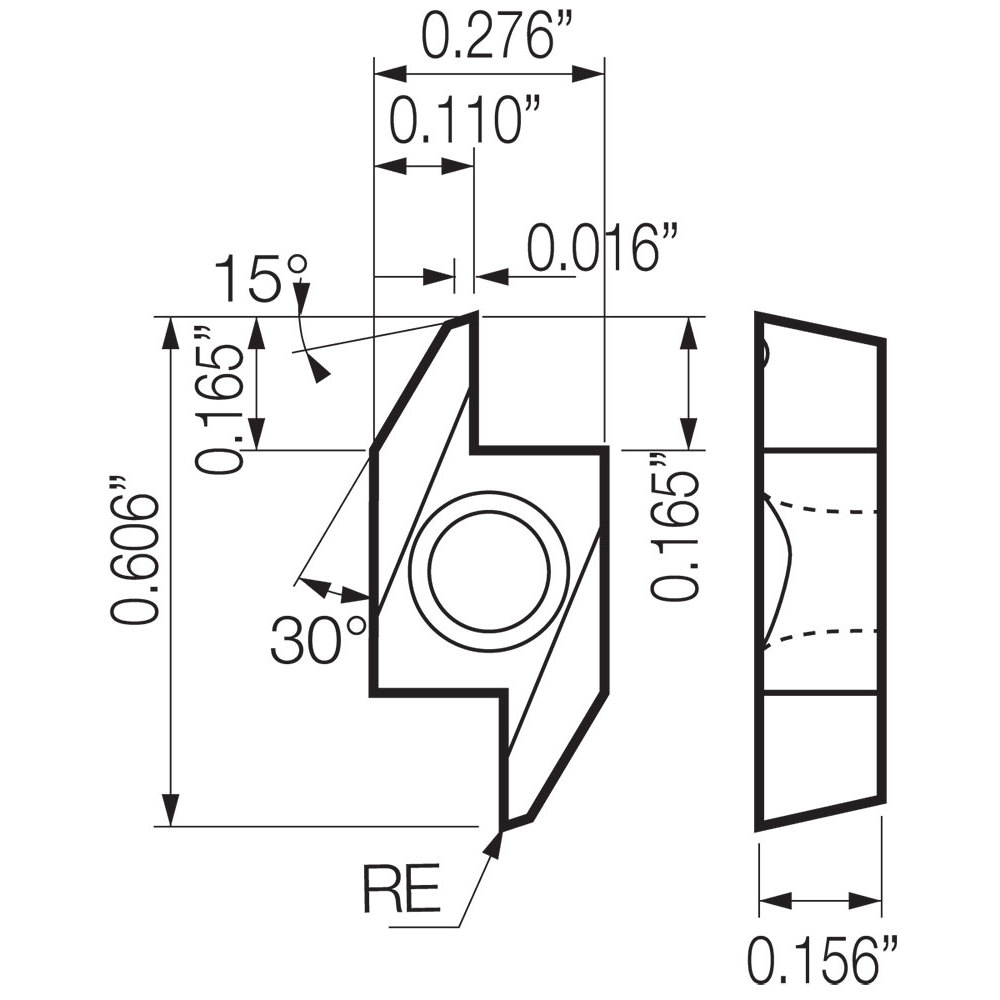

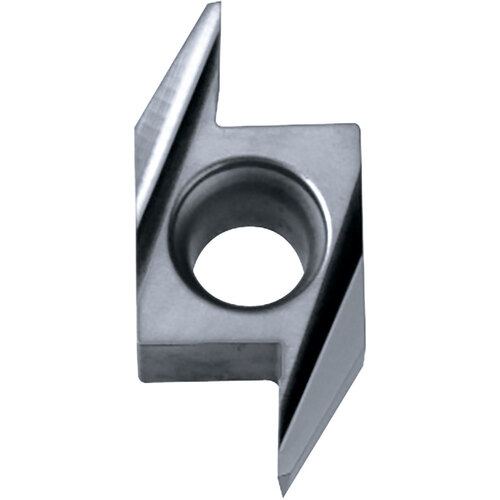

ABS 15R4005 KW10 INSERT
Turning Insert; Irregular ; 0.6063″ Length × 0.002″ Corner Radius ; KW10 ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Application | Back Turning | Grade | KW10 |
| Insert Style | ABS | Fixing Hole Diameter (D1) | 0.1181″ |
| Corner Radius (RE) | 0.002″ | Clearance Angle Major (AN) | 15 Degrees |
| Insert Size | 15-4005 | Number of Cutting Edges | 2 |
| Cutting Edge Length (L) | 0.6063″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.1563″ | Shape | Irregular |
| Cutting Edge Material | Carbide | Insert Width (W1) | 0.2756″ |
Product Features
| Family Description | Alternate Manufacture # ABS15R4005KW10 | Country of Origin | Japan |
Shipping Info
Package Weight
0.099
