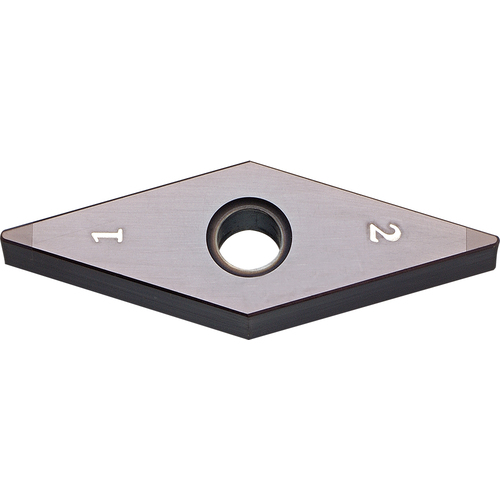

VNGA 332 ME4 KBN05M, 1/32″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, MEGACOAT, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 3/8″ IC × 1/32″ Corner Radius ; KBN05M ; CBN ; MEGACOAT

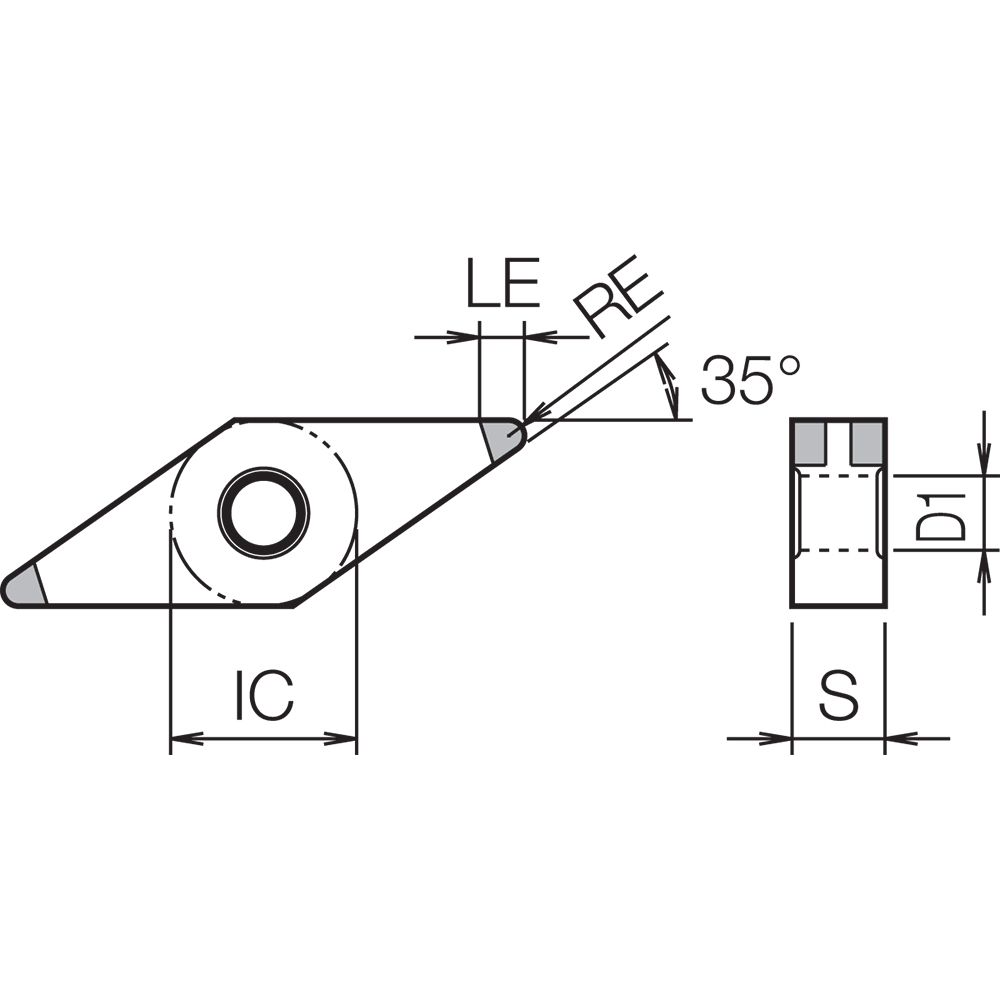

| Applicable Material | | Hard Materials | | Coating | MEGACOAT |
| Application | External Turning | Copying | Facing | Undercutting | Grade | KBN05M |
| Insert Style | VNGA | Fixing Hole Diameter (D1) | 0.15″ |
| Corner Radius (RE) | 1/32″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 332 | Number of Cutting Edges | 6 |
| Insert Thickness (S) | 3/16″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | ME4 |
| Cutting Edge Material | CBN | Shape | Diamond |
Product Features
| Family Description | Alternate Manufacture # VNGA332ME4KBN05M | Country of Origin | Japan |
Shipping Info
Package Weight
0.042
Related Documentation
