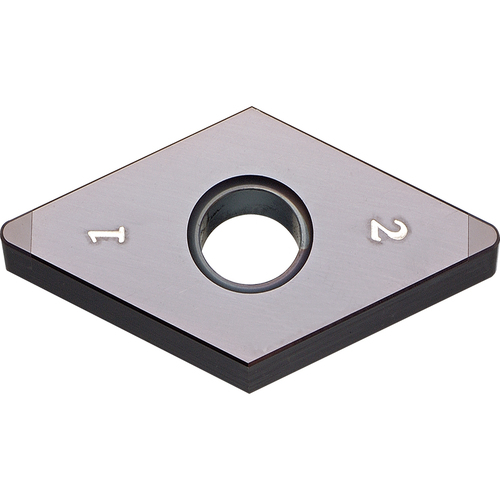

DNGA 433 ME4 KBN05M, 3/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, MEGACOAT, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 1/2″ IC × 3/64″ Corner Radius ; KBN05M ; CBN ; MEGACOAT
| Applicable Material | | Hard Materials | | Coating | MEGACOAT |
| Application | External Turning | Copying | Boring | Grade | KBN05M |

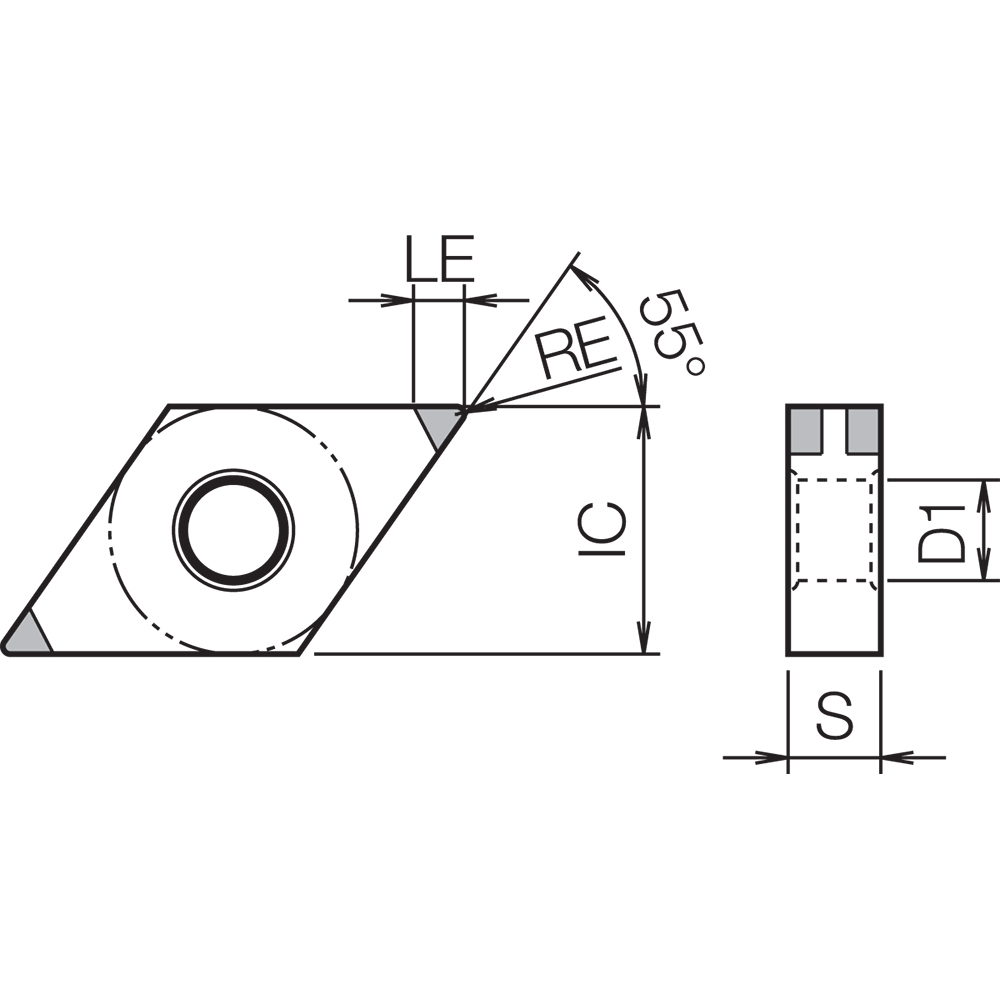

| Insert Style | DNGA | Fixing Hole Diameter (D1) | 0.2031″ |
| Corner Radius (RE) | 3/64″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 433 | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 3/16″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | ME4 |
| Cutting Edge Material | CBN | Shape | Diamond |
Product Features
| Family Description | Alternate Manufacture # DNGA433ME4KBN05M | Country of Origin | Japan |
Shipping Info
Package Weight
.0470
