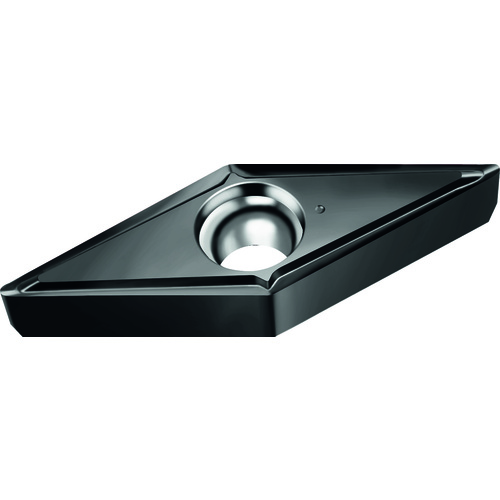

VCGT2(2)0.2-FN2 WNN10 INS
Turning Insert; 35 Rhombic ; 11.071 mm Length × 6.35 mm IC × 0.1 mm Corner Radius ; WNN10 ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Min D.O.C. | 0.12 mm |
| Insert Style | VCGT | Depth of Cut Maximum (APMX) | 1.5 mm |
| Corner Radius (RE) | 0.1 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 110301 | Number of Cutting Edges | 2 |
| Cutting Edge Length (L) | 11.071 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3.175 mm | Chip Breaker Type | FN2 |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | 35° Rhombic |
| Coating | TiAlN | Series/List # | VCGT-FN2 |
| Grade | WNN10 | Cutting Depth Maximum (CDX) | 1.5 mm |
| Fixing Hole Diameter (D1) | 2.8 mm | Cutting Edge Effective Length (LE) | 11.071 mm |
| Tool Type | Turning Insert | Model No | VCGT110301-FN2 WNN10 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.1
