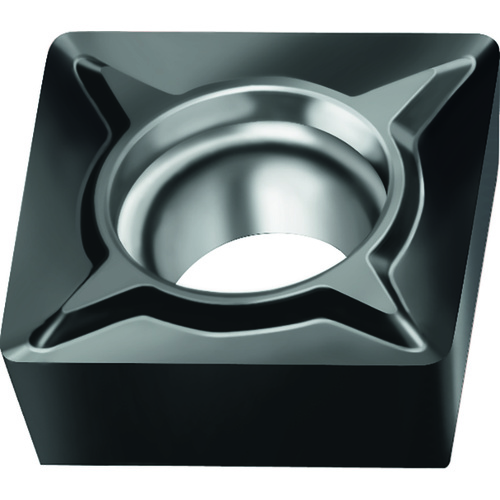

SCGT432-FN2 WNN10 INSERT
Turning Insert; Square ; 12.7 mm Length × 12.7 mm IC × 0.8 mm Corner Radius ; WNN10 ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Min D.O.C. | 0.3 mm |
| Insert Style | SCGT | Depth of Cut Maximum (APMX) | 3 mm |
| Corner Radius (RE) | 0.8 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 432 | Number of Cutting Edges | 4 |
| Cutting Edge Length (L) | 12.7 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 4.763 mm | Chip Breaker Type | FN2 |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | Square |
| Coating | TiAlN | Series/List # | SCGT-FN2 |
| Grade | WNN10 | Cutting Depth Maximum (CDX) | 3 mm |
| Fixing Hole Diameter (D1) | 5.5 mm | Cutting Edge Effective Length (LE) | 12.7 mm |
| Tool Type | Turning Insert | Model No | SCGT120408-FN2 WNN10 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.1
