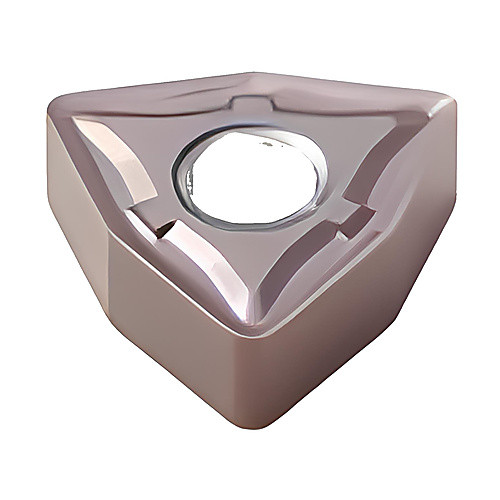

WNMG 433 M5 TH1000, 3/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, Turning Indexable Insert
Turning Insert; 80 Trigon ; 8.7 mm Length × 1/2″ IC × 3/64″ Corner Radius ; TH1000 ; Carbide ; TiAlSiN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | Hard Materials | | Grade | TH1000 |
| Insert Style | WNMG | Tool Type | Turning Insert |
| Corner Radius (RE) | 3/64″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 433 | Number of Cutting Edges | 6 |
| Cutting Edge Length (L) | 8.7 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | M5 |
| Inscribed Circle Diameter (IC) | 1/2″ | Shape | 80° Trigon |
| Cutting Edge Material | Carbide | Series/List # | WNMG 433-Double-sided|G |
| Coating | TiAlSiN |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.022
