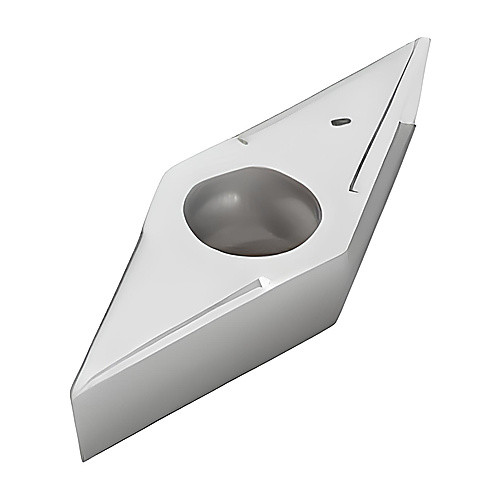

VBGT 160404 M3 HX, 0.4 mm Corner Radius, 4.76 mm Thick, 9.52 mm Inscribed Circle, Uncoated, Turning Indexable Insert
Turning Insert; VBGT331-M3 HX ; 16 mm Length ; 9.52 mm IC ; 0.4 mm Corner Radius ; Carbide ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Insert Style | VBGT | Grade | HX |
| Corner Radius (RE) | 0.4 mm | Tool Type | Turning Insert |
| Insert Size | 160404 | Clearance Angle Major (AN) | 5 Degrees |
| Cutting Edge Length (L) | 16 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | M3 |
| Cutting Edge Material | Carbide | Shape | 35° Diamond |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.02
