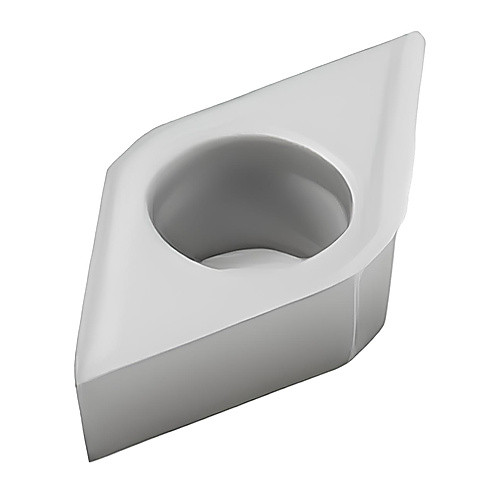

DCGT070202-M3 GRADE HX TURNING INSERT
Turning Insert; DCGT070202-M3 HX ; 7.8 mm Length ; 1/4″ IC ; 0.2 mm Corner Radius ; Carbide ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Insert Style | DCGT | Grade | HX |
| Corner Radius (RE) | 0.2 mm | Tool Type | Turning Insert |
| Insert Size | 70202 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 7.8 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 3/32″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | M3 |
| Cutting Edge Material | Carbide | Shape | 55° Diamond |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.002
