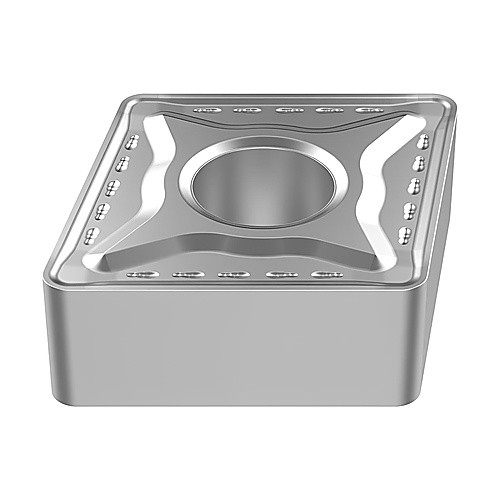

CNMG644-M6 GRADE TP1501 TURNING INSERT
Turning Insert; CNMG644-M6 TP1501 ; 19.3 mm Length ; 19.05 mm IC ; 1.6 mm Corner Radius ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Coating | | TiCN | Al2O3 | Cr | |
| Insert Style | CNMG | Grade | TP1501 |
| Corner Radius (RE) | 1.6 mm | Tool Type | Turning Insert |
| Insert Size | 644 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 19.3 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 6.35 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 19.05 mm | Chip Breaker Type | M6 |
| Cutting Edge Material | Carbide | Shape | 80° Diamond |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.062
