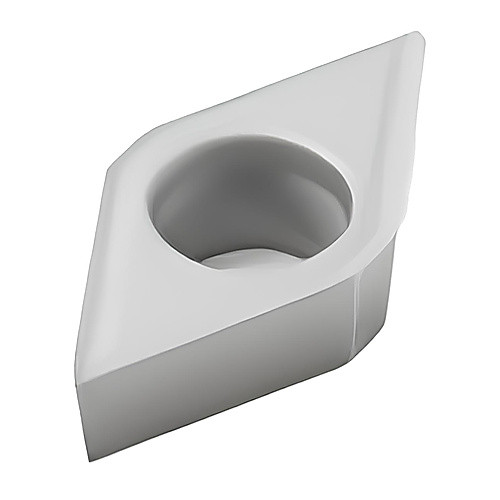

DCGT 11T308 M3 HX, 0.8 mm Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, Uncoated, Turning Indexable Insert
Turning Insert; DCGT11T308-M3 HX ; 11.6 mm Length ; 3/8″ IC ; 0.8 mm Corner Radius ; Carbide ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Insert Style | DCGT | Grade | HX |
| Corner Radius (RE) | 0.8 mm | Tool Type | Turning Insert |
| Insert Size | 11T308 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 11.6 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 5/32″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | M3 |
| Cutting Edge Material | Carbide | Shape | 55° Diamond |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.009
