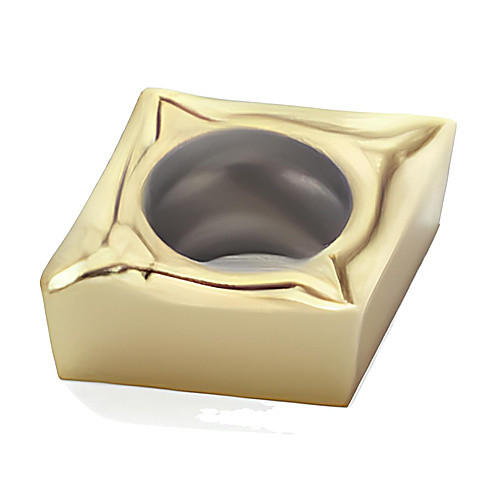

CCMT 21.51 F1 CP600, 1/12″ Corner Radius, 3/32″ Thick, 1/4″ Inscribed Circle, Turning Indexable Insert
Turning Insert; CCMT21.51-F1 CP600 ; 6.5 mm Length ; 1/4″ IC ; 1/12″ Corner Radius ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | CP600 |
| Insert Style | CCMT | Tool Type | Turning Insert |
| Corner Radius (RE) | 0.0157″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 21.51 | Number of Cutting Edges | 2 |
| Cutting Edge Length (L) | 6.5 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/32″ | Chip Breaker Type | F1 |
| Inscribed Circle Diameter (IC) | 1/4″ | Shape | 80° Diamond |
| Cutting Edge Material | Carbide | Series/List # | CCMT 21.51-T|Single-sided |
| Coating | | TiN | TiAlN | |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.002
