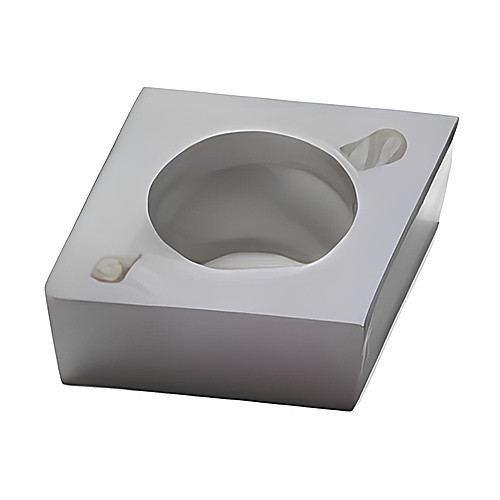

CCGW 32.51 None|W CBN060K, 1/64″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Turning Insert; CCGW32.51SL1WZPB CBN060K ; 9.7 mm Length ; 3/8″ IC ; 1/64″ Corner Radius ; PCBN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Hard Materials | | Grade | CBN060K |
| Insert Style | CCGW | Tool Type | Turning Insert |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 32.51 | Number of Cutting Edges | 2 |
| Cutting Edge Length (L) | 9.7 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 5/32″ | Chip Breaker Type | None|W |
| Inscribed Circle Diameter (IC) | 3/8″ | Shape | 80° Diamond |
| Cutting Edge Material | PCBN | Series/List # | CCGW 32.51-None|W |
| Coating | TiAlSiN |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.007
