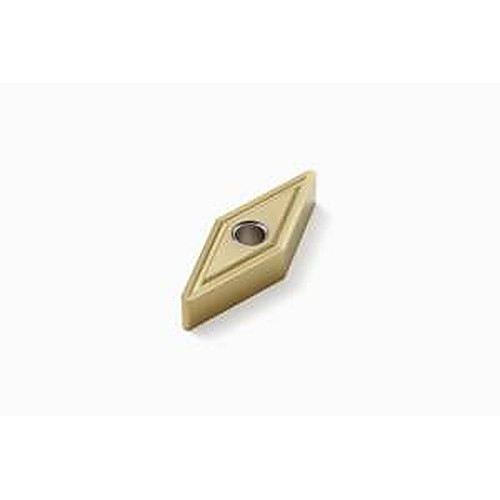

VNGP 331 M1 TS2500, 1/64″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Turning Insert; 35 Diamond ; 16 mm Length × 3/8″ IC × 1/64″ Corner Radius ; TS2500 ; Carbide ; | TiN | TiAlN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TS2500 |
| Insert Style | VNGP | Tool Type | Turning Insert |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 331 | Number of Cutting Edges | 4 |
| Cutting Edge Length (L) | 16 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | M1 |
| Inscribed Circle Diameter (IC) | 3/8″ | Shape | 35° Diamond |
| Cutting Edge Material | Carbide | Series/List # | VNGP 331-Double-sided|G |
| Coating | | TiN | TiAlN | |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.022
