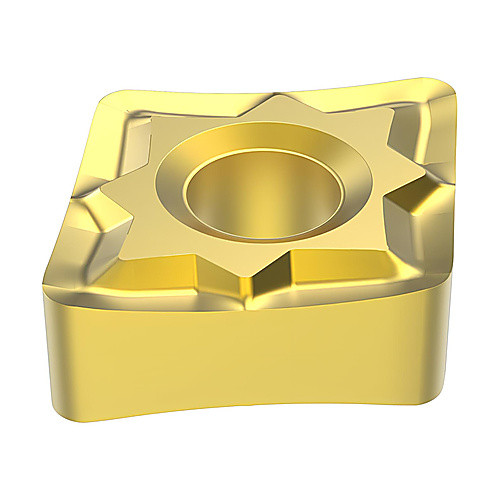

CNMG 432 MF1 CP500, 1/32″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, Turning Indexable Insert
Turning Insert; 80 Diamond ; 12.9 mm Length × 1/2″ IC × 1/32″ Corner Radius ; CP500 ; Carbide ; | TiN | TiAlN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | CP500 |
| Insert Style | CNMG | Tool Type | Turning Insert |
| Corner Radius (RE) | 1/32″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 432 | Number of Cutting Edges | 4 |
| Cutting Edge Length (L) | 12.9 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | MF1 |
| Inscribed Circle Diameter (IC) | 1/2″ | Shape | 80° Diamond |
| Cutting Edge Material | Carbide | Series/List # | CNMG 432-Double-sided|G |
| Coating | | TiN | TiAlN | |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.02
