IDR-2160 ZA54J

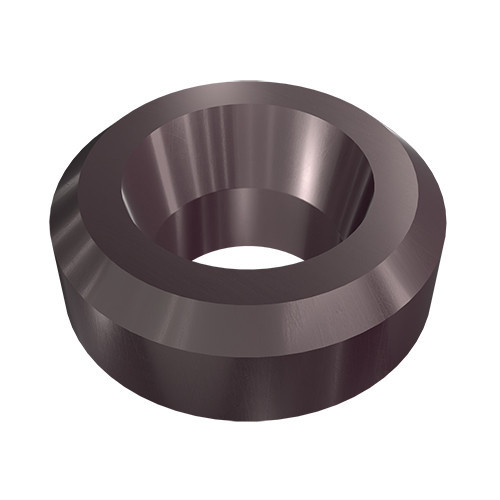

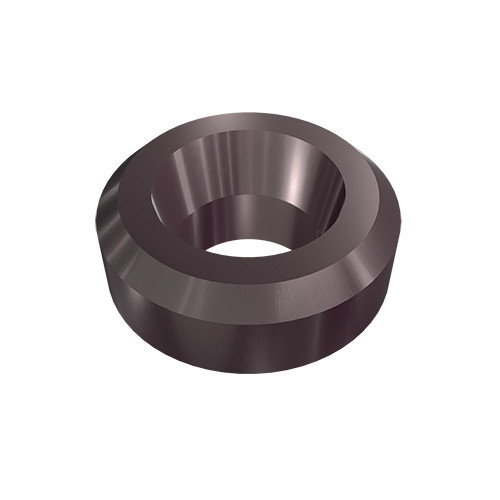

Turning Insert; Round ; 2.164″ Length × 2.164″ IC × 1.082″ Corner Radius ; ZA54J ; Carbide ; TiAlN+
| Applicable Material | | Steel | | Fixing Hole Diameter (D1) | 1.578″ |
| Application | | Int Pipe Scarfing | | Tool Type | Scarfing Insert |
| Insert Style | IDR | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 1.082″ | Number of Cutting Edges | 3 |
| Insert Size | 2160 | Cutting Direction (HAND) | Neutral |
| Cutting Edge Length (L) | 2.164″ | Quantity | 10 |
| Insert Thickness (S) | 0.785″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 2.164″ | Shape | Round |
| Insert Included Angle (EPSR) | 60 Degrees | Series/List # | #16 |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN+ | Model No | 8866423 |
| Grade | ZA54J |
Product Features
| Family Description | Internal Pipe Scarfing Rings | Country of Origin | USA |
Shipping Info
Package Weight
0.5
