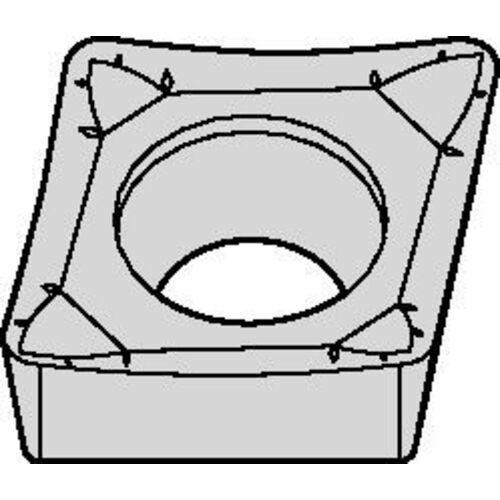

CCGT 431 Single-sided|T HWK15, 1/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, Uncoated, Turning Indexable Insert
Turning Insert; CCGT431AL3 HWK15 ; 0.5077″ Length ; 1/2″ IC ; 1/64″ Corner Radius ; Carbide ; Neutral ; Uncoated
Additional Tariff Surcharge of 8.5 %
| Insert Style | CCGT | Coating | Uncoated |
| Corner Radius (RE) | 1/64″ | Grade | HWK15 |
| Insert Size | 431 | Fixing Hole Diameter (D1) | 0.216″ |
| Cutting Edge Length (L) | 0.508″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 3/16″ | Number of Cutting Edges | 2 |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | Single-sided|T |
Product Features
| Remarks | CCGT | Country of Origin | Germany |
Shipping Info
Package Weight
0.02
