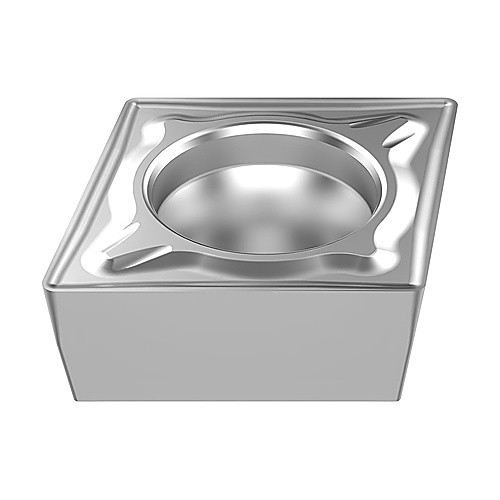

CCMT 432 M5 TP3501, 0.8 mm Corner Radius, 4.76 mm Thick, 12.7 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; CCMT432-M5 TP3501 ; 12.1 mm Length ; 12.7 mm IC ; 0.8 mm Corner Radius ; Carbide ; Neutral
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | | Grade | TP3501 |
| Insert Style | CCMT | Fixing Hole Diameter (D1) | 5.6 mm |
| Corner Radius (RE) | 0.8 mm | Tool Type | Turn Positive Insert |
| Insert Size | 432 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 12.1 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | M5 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | | TiCN | Al2O3 | Cr | | Shape | 80° Diamond |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.018
