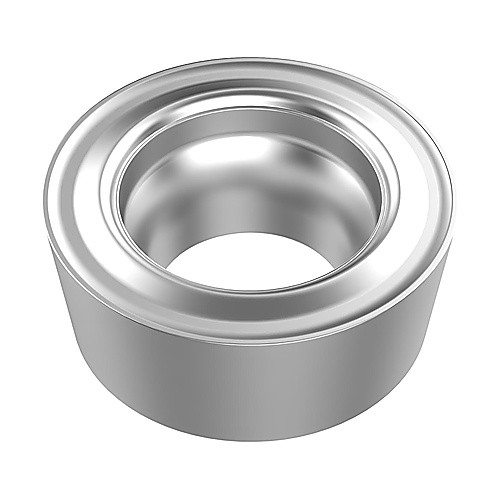

RCMT1606M0-M3 TP3501 TURNING INSERT
Turning Insert; Round x 16 mm IC ; TP3501
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | | Grade | TP3501 |
| Insert Style | RCMT | Fixing Hole Diameter (D1) | 5.6 mm |
| Corner Radius (RE) | 0.315″ | Tool Type | Turn Positive Insert |
| Insert Size | 1606M0 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.6299″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 6.35 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 16 mm | Chip Breaker Type | M3 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | | TiCN | Al2O3 | Cr | | Shape | Round |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.029
