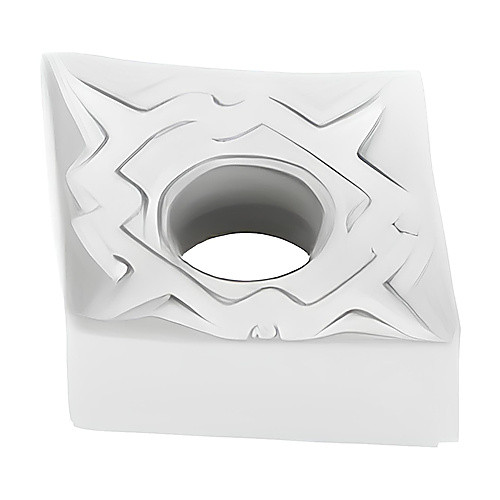

CNMM643-R6 TP3501 TURNING INSERT
Turning Insert; CNMM643-R6 TP3501 ; 18.1 mm Length ; 19.05 mm IC ; 1.2 mm Corner Radius ; Carbide ; Neutral
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | | Grade | TP3501 |
| Insert Style | CNMM | Fixing Hole Diameter (D1) | 7.92 mm |
| Corner Radius (RE) | 1.2 mm | Tool Type | Turn Negative Insert |
| Insert Size | 643 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 18.1 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 6.35 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 19.05 mm | Chip Breaker Type | R6 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | | TiCN | Al2O3 | Cr | | Shape | 80° Diamond |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.053
