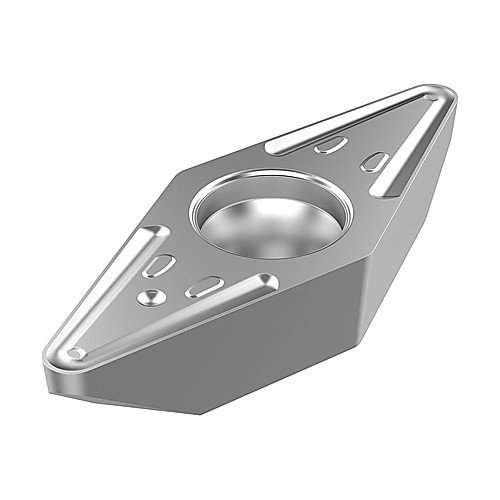

VBMT333-M3 TP3501 TURNING INSERT
Turning Insert; VBMT333-M3 TP3501 ; 13.6 mm Length ; 9.525 mm IC ; 1.2 mm Corner Radius ; Carbide ; Neutral
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | | Grade | TP3501 |
| Insert Style | VBMT | Fixing Hole Diameter (D1) | 4.5 mm |
| Corner Radius (RE) | 1.2 mm | Tool Type | Turn Positive Insert |
| Insert Size | 333 | Clearance Angle Major (AN) | 5 Degrees |
| Cutting Edge Length (L) | 13.6 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 9.525 mm | Chip Breaker Type | M3 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | | TiCN | Al2O3 | Cr | | Shape | 35° Diamond |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.018
