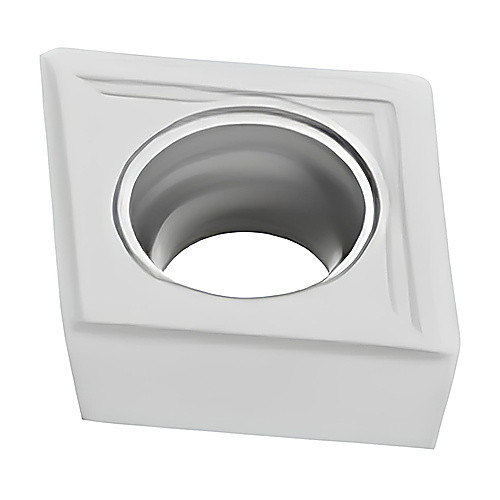

CCMT21.52-M3 TK1501
Turning Insert; CCMT21.52-M3 TK1501 ; 5.6 mm Length ; 6.35 mm IC ; 0.8 mm Corner Radius ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | TK1501 |
| Insert Style | CCMT | Fixing Hole Diameter (D1) | 2.9 mm |
| Corner Radius (RE) | 0.8 mm | Tool Type | Turn Positive Insert |
| Insert Size | 21.52 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 5.6 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 2.38 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 6.35 mm | Chip Breaker Type | M3 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | | TiCN | Al2O3 | Cr | | Shape | 80° Diamond |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.002
