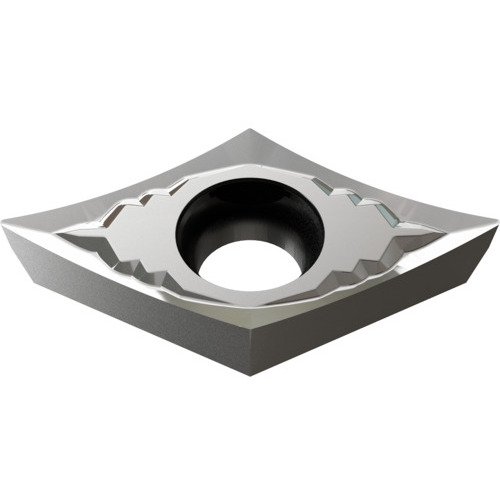

DCGT11T302-AL-YG10/DCGT32.50.5-AL
Turning Insert; Rhombic 55 ; 0.362″ Length × 3/8″ IC × 0.0078″ Corner Radius ; YG10 ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Tool Type | Turning Positive Insert |
| Insert Style | DCGT | Depth of Cut Maximum (APMX) | 1″ |
| Corner Radius (RE) | 0.0078″ | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.362″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 1/8″ | Chip Breaker Type | AL |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | Rhombic 55° |
| Coating | Uncoated | Series/List # | DCGT |
| Grade | YG10 | Cutting Edge Effective Length (LE) | 0.362″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4
Package Width
1.75
Package Height
0.625
Package Weight
0.012
