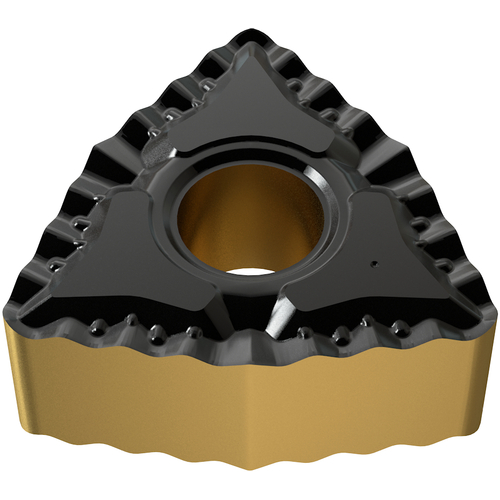

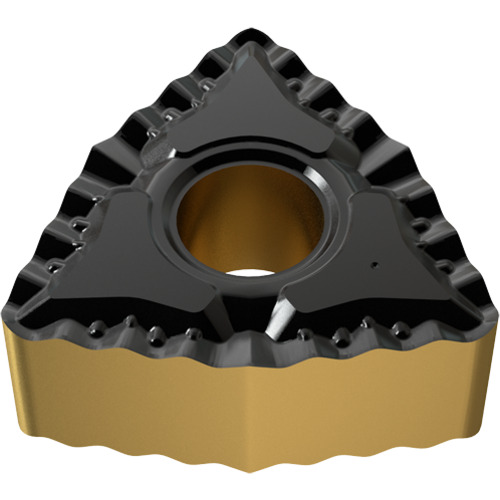

WNMG060408-UL-YG3030/WNMG332-UL
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turning Negative Insert |
| Insert Style | WNMG | Depth of Cut Maximum (APMX) | 2-1/2″ |
| Corner Radius (RE) | 1/32″ | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.224″ | Number of Cutting Edges | 6 |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | UL |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | Trigon |
| Coating | | Al2O3 | TiCN | | Series/List # | WNMG |
| Grade | YG3030 | Cutting Edge Effective Length (LE) | 0.224″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4
Package Width
1.75
Package Height
0.625
Package Weight
0.152
