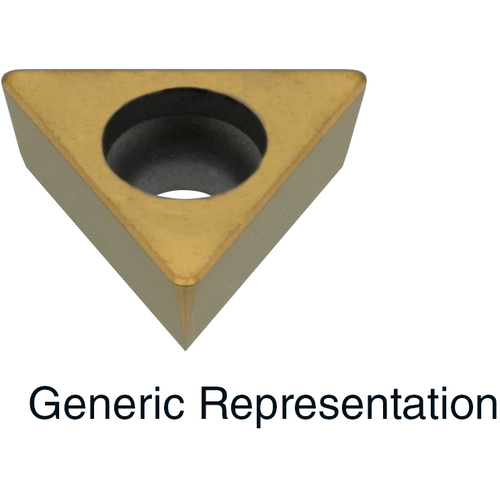

3NCTPGA221-BNC2020 Turning Insert
Turning Insert; 60 Triangle × 1/4″ IC × 0.016″ Corner Radius ; BNC2020 ; PCBN
| Applicable Material | | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | BNC2020 |
| Insert Style | TPGA | Fixing Hole Diameter (D1) | 0.13″ |
| Corner Radius (RE) | 0.016″ | Tool Type | Turning Insert |
| Insert Size | 221 | Depth of Cut Maximum (APMX) | 0.015″ |
| Cutting Edge Length (L) | 1/4″ | Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 1/8″ | Number of Cutting Edges | 3 |
| Inscribed Circle Diameter (IC) | 1/4″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCBN | Chip Breaker Type | A |
| Coating | TiN | Shape | 60° Triangle |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.06
