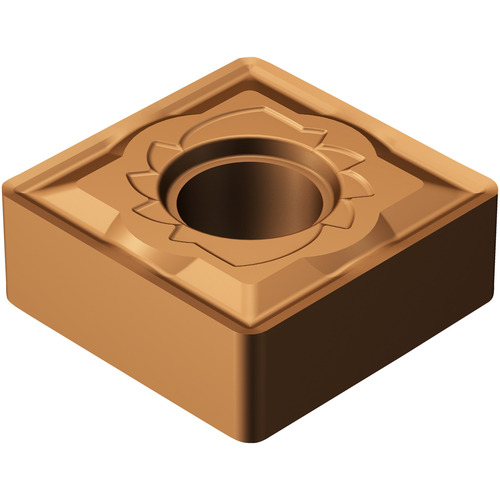

SNMG543SM 1115 TURNING
Turning Insert; Square x 5/8″ IC × 0.047″ Corner Radius ; 1115 ; Carbide ; | TiAlN | AlCr2O3 |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 1/4″ |
| Insert Style | SNMG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 0.047″ | Cutting Direction (HAND) | Neutral |
| Insert Size | 543 | Chip Breaker Type | SM |
| Insert Thickness (S) | 1/4″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 5/8″ | Shape | Square |
| Cutting Edge Material | Carbide | Series/List # | SNMG -SM |
| Coating | | TiAlN | AlCr2O3 | | Model No | SNMG543-SM |
| Grade | 1115 |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Length
.70000
Package Width
.70000
Package Height
.20000
Package Weight
0.5
