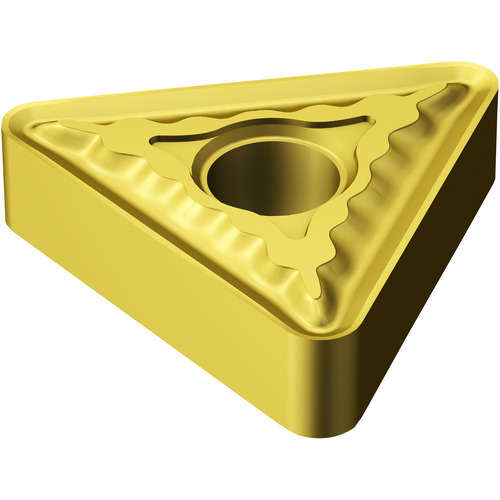

TNMG 322 QM 235, 0.032″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, TiCN|TiN, Triangle, Turning Indexable Insert
Turning Insert; Triangle x 3/8″ IC × 0.032″ Corner Radius ; 235 ; Carbide ; | TiN | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.15″ |
| Insert Style | TNMG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 0.032″ | Cutting Direction (HAND) | Neutral |
| Insert Size | 322 | Chip Breaker Type | QM |
| Insert Thickness (S) | 1/8″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/8″ | Shape | Triangle |
| Cutting Edge Material | Carbide | Series/List # | TNMG 322-QM |
| Coating | | TiN | TiCN | | Model No | TNMG322-QM |
| Grade | 235 |
Product Features
| Family Description | 0 | Country of Origin | Japan |
Shipping Info
Package Length
.50000
Package Width
.50000
Package Height
.18900
Package Weight
0.128
