DCGT2(1.5)0.5-PF2 Grade WSM20

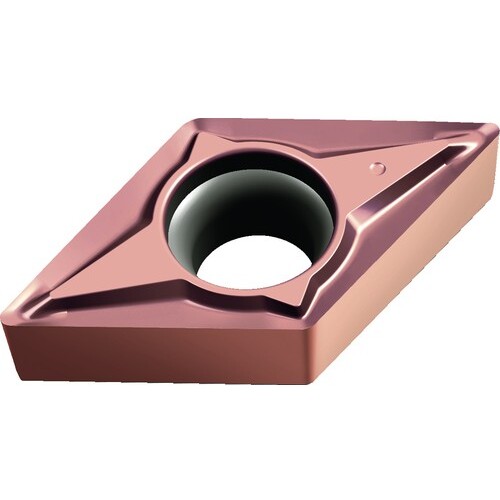

Turning Insert; 55 Diamond ; 0.305″ Length × 1/4″ IC × 0.008″ Corner Radius ; WSM20 ; Carbide ; | ZrCN | TiAlN | Al2O3 |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Grade | WSM20 |
| Insert Style | DCGT | Fixing Hole Diameter (D1) | 0.11″ |
| Corner Radius (RE) | 0.008″ | Tool Type | Turning Insert |
| Insert Size | 70202 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.305″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 3/32″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | T|Single-sided |
| Cutting Edge Material | Carbide | Shape | 55° Diamond |
| Coating | | ZrCN | TiAlN | Al2O3 | | Series/List # | DCGT-WSM20 |
Product Features
| Family Description | DCGT2(1.5).5-PF2 WSM20 | Country of Origin | Germany |
Shipping Info
Package Weight
0.057
