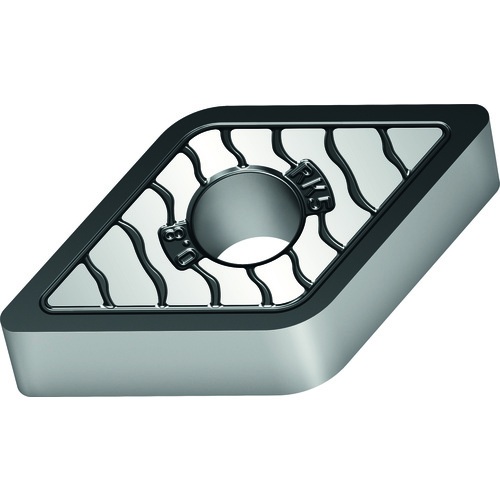

DNMA 331 A|None WKK10S, 1/64″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, 55° Diamond, Turning Indexable Insert
Turning Insert; 55 Diamond ; 0.457″ Length × 3/8″ IC × 1/64″ Corner Radius ; WKK10S ; Carbide ; | TiCN | Al2O3 |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Grade | WKK10S |
| Insert Style | DNMA | Fixing Hole Diameter (D1) | 0.15″ |
| Corner Radius (RE) | 1/64″ | Tool Type | Turning Insert |
| Insert Size | 331 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.457″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 3/16″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | A|None |
| Cutting Edge Material | Carbide | Shape | 55° Diamond |
| Coating | | TiCN | Al2O3 | | Series/List # | DNMA-WKK10S |
Product Features
| Family Description | DNMA331-RK5 WKK10S | Country of Origin | Germany |
Shipping Info
Package Weight
