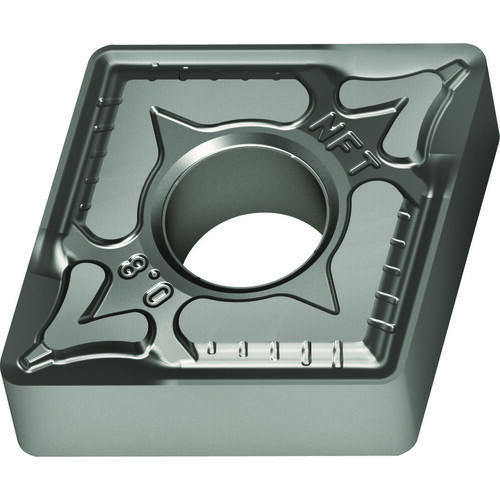

CNMG 431 G|Double-sided WS10, 1/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, 80° Diamond, Turning Indexable Insert
Turning Insert; 80 Rhombic ; 12.896 mm Length × 12.7 mm IC × 0.4 mm Corner Radius ; WS10 ; Carbide ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Min D.O.C. | 0.4 mm |
| Insert Style | CNMG | Depth of Cut Maximum (APMX) | 1.5 mm |
| Corner Radius (RE) | 0.4 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 431 | Number of Cutting Edges | 4 |
| Cutting Edge Length (L) | 12.896 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 4.763 mm | Chip Breaker Type | NFT |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | 80° Rhombic |
| Coating | Uncoated | Cutting Depth Maximum (CDX) | 1.5 mm |
| Grade | WS10 | Cutting Edge Effective Length (LE) | 12.896 mm |
| Fixing Hole Diameter (D1) | 5.16 mm | Model No | CNMG120404-NFT WS10 |
| Tool Type | Turning Insert |
Product Features
| Family Description | CNMG431-NFT WS10 | Country of Origin | Germany |
Shipping Info
Package Weight
0.005
