TFRR07240050-D060 AC22

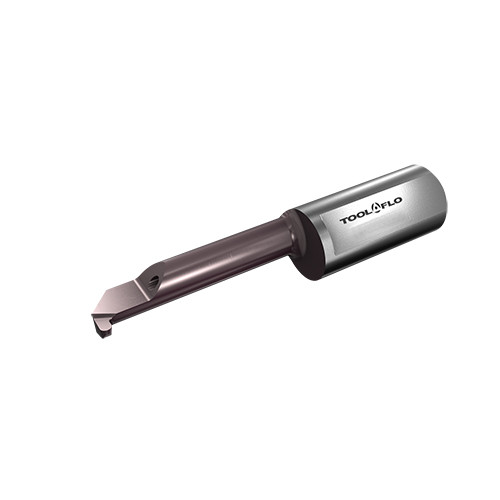

Boring Bar; 0.276″ Shank Dia. × 0.236″ Min Bore Dia. × 0.071″ Max Bore Depth × 1.575″ LF × 1.575″ OAL ; 0.0197″ Corner Radius ; Carbide ; TiAlN
| Connection Diameter Machine Side (DCONMS) | 0.276″ | Front End Width (a) | 0.209″ |
| Minimum Bore Diameter (DMIN) | 0.236″ | Corner Radius (RE) | 0.0197″ |
| Functional Length (LF) | 1.575″ | Cutting Depth Maximum (CDX) | 0.071″ |
| Head Length (LH) | 0.945″ | Functional Width (WF) | 0.071″ |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Coating | TiAlN | Cutting Edge Material | Carbide |
| Grade | AC22 | Measurement Type | Inch |
| Application | | Internal Profiling | | Overall Length (OAL) | 1.575″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Width (CW) | 0.039″ |
Product Features
| Family Description | Solid boring bars for Boring & profiling, full radius type | Country of Origin | Israel |
Shipping Info
Package Weight
0.002
