TFIR04140050-D040 AC22

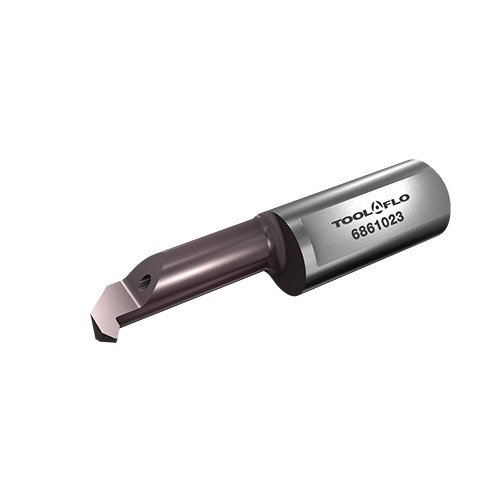

MicroCut Right Hand Bars with Internal Coolant for 60° Threading
| Thread Pitch (TP) | 0.5 mm | Measurement Type | Inch |
| Overhang Minimum (OHN) | 0.01″ | Overall Length (OAL) | 1.181″ |
| Functional Width (WF) | 0.059″ | Minimum Bore Diameter (DMIN) | 0.157″ |
| Cutting Direction (HAND) | Right Hand | Central Flat (CF) | 0.002″ |
| Cutting Edge Material | Carbide | Grade | AC22 |
| Connection Diameter Machine Side (DCONMS) | 0.157″ | Threads per Inch (TPI) | 50.8 |
| Application | | Internal Thread Turning | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Head Length (LH) | 0.551″ |
| Coating | TiAlN | Front End Width (a) | 0.14″ |
Product Features
| Family Description | MicroCut Right Hand Bars with Internal Coolant for 60° Threading | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
