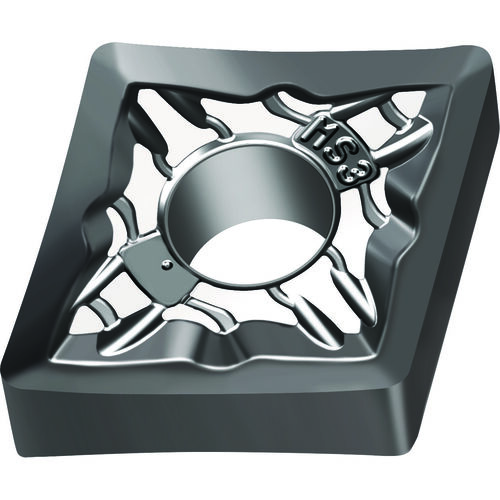

7903820 WALTER INDEXABLE
Turning Insert; 80 Rhombic ; 19.344 mm Length × 19.05 mm IC × 1.2 mm Corner Radius ; WSM01 ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Min D.O.C. | 1.2 mm |
| Insert Style | CNMG | Depth of Cut Maximum (APMX) | 5 mm |
| Corner Radius (RE) | 1.2 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 190612 | Number of Cutting Edges | 4 |
| Cutting Edge Length (L) | 19.344 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 6.35 mm | Chip Breaker Type | MS3 |
| Inscribed Circle Diameter (IC) | 19.05 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | 80° Rhombic |
| Coating | TiAlN | Series/List # | CNMG-MS3 |
| Grade | WSM01 | Cutting Depth Maximum (CDX) | 5 mm |
| Fixing Hole Diameter (D1) | 7.93 mm | Cutting Edge Effective Length (LE) | 19.344 mm |
| Tool Type | Turning Insert | Model No | CNMG190612-MS3 WSM01 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.999
