TCGW1.210.5 MD220

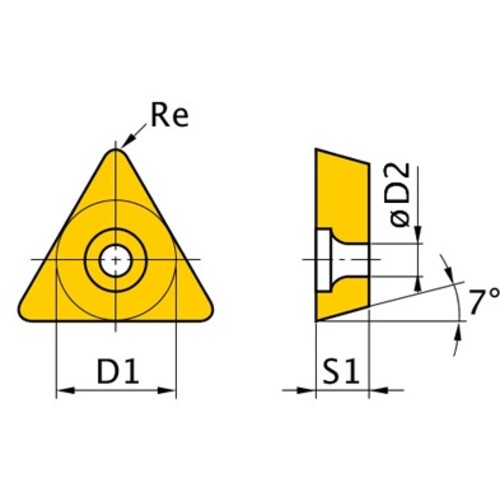

Turning Insert; Triangle x 3.97 mm IC × 0.2 mm Corner Radius ; MD220 ; PCD
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 2.3 mm |
| Insert Style | TCGW | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.2 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 1.210.5 | Chip Breaker Type | flat_top |
| Insert Thickness (S) | 1.59 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 3.97 mm | Shape | Triangle |
| Insert Included Angle (EPSR) | 60 Degrees | Series/List # | MD220 |
| Cutting Edge Material | PCD | Cutting Edge Effective Length (LE) | 1.5 mm |
| Grade | MD220 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.200
