VDGX321LF MD220

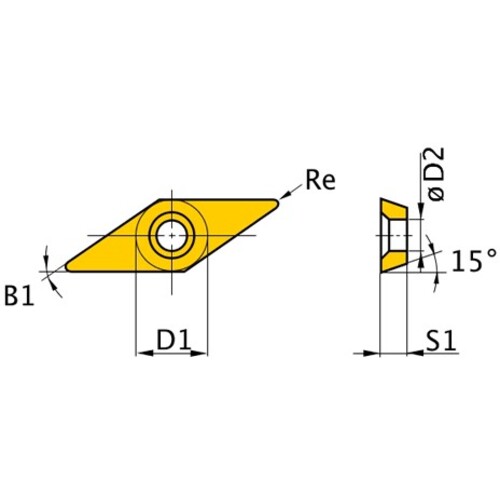

Turning Insert; 35 Rhombic × 9.525 mm IC × 0.4 mm Corner Radius ; MD220 ; PCD
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Clearance Angle Major (AN) | 15 Degrees |
| Corner Radius (RE) | 0.4 mm | Cutting Direction (HAND) | Left Hand |
| Insert Size | 321 | Chip Breaker Type | L-F |
| Insert Thickness (S) | 3.18 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm | Shape | 35° Rhombic |
| Insert Included Angle (EPSR) | 35 Degrees | Series/List # | MD220 |
| Cutting Edge Material | PCD | Cutting Depth Maximum (CDX) | 2 mm |
| Grade | MD220 | Cutting Edge Effective Length (LE) | 2.7 mm |
| Fixing Hole Diameter (D1) | 4.5 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.200
