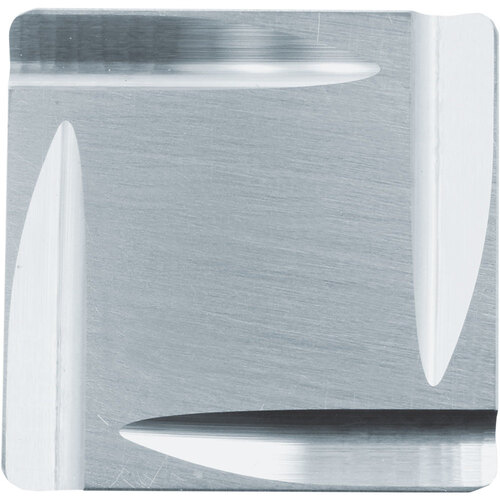

SPGR 421 TN620, 1/64″ Corner Radius, 1/8″ Thick, 1/2″ Inscribed Circle, TiCN, 90 Degree Square, Turning Indexable Insert
Turning Insert; Square x 1/2″ IC × 1/64″ Corner Radius ; TN620 ; Cermet ; TiCN
| Applicable Material | | Super-Alloys / Titanium | | Grade | TN620 |
| Application | Boring | Chamfering | External Turning | Facing | Tool Type | Turning Insert |
| Insert Style | SPGR | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 4 |
| Insert Size | 421 | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 1/8″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees | Shape | Square |
| Cutting Edge Material | Cermet | Series/List # | ISOI |
| Coating | TiCN | Model No | 8862679 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.107
