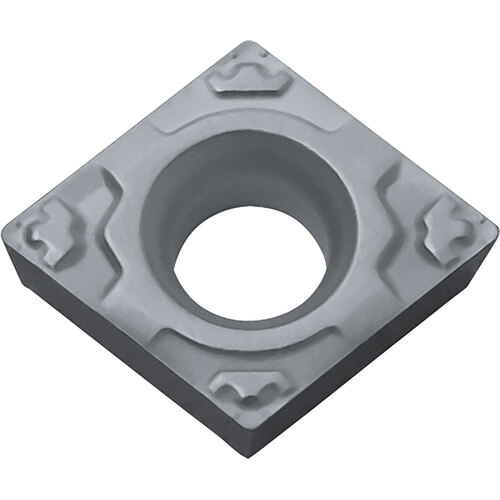

CPMT 25151 GP TN610, 1/64″ Corner Radius, 3/32″ Thick, 5/16″ Inscribed Circle, TiCN, 80 Degree Diamond, Turning Indexable Insert
Turning Insert; 80 Diamond × 5/16″ IC × 1/64″ Corner Radius ; TN610 ; Cermet ; TiCN
| Applicable Material | | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.1299″ |
| Application | Boring | Internal Facing | Tool Type | Turning Insert |
| Insert Style | CPMT | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 2 |
| Insert Size | 25151 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/32″ | Chip Breaker Type | GP |
| Inscribed Circle Diameter (IC) | 5/16″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Cermet | Shape | 80° Diamond |
| Coating | TiCN | Series/List # | ISOI |
| Grade | TN610 | Model No | 8847896 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.050
