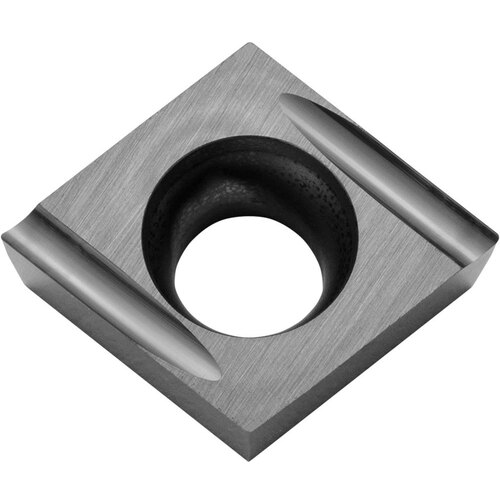

CCET 32505 U TN620, 0.008″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, TiCN, 80 Degree Diamond, Turning Indexable Insert
Turning Insert; 80 Diamond × 3/8″ IC × 0.008″ Corner Radius ; TN620 ; Cermet ; TiCN
| Applicable Material | | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.1732″ |
| Application | Boring | External Turning | Facing | Internal Facing | Sub-Spindle | Tool Type | Turning Insert |
| Insert Style | CCET | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.008″ | Number of Cutting Edges | 2 |
| Insert Size | 32505 | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 5/32″ | Chip Breaker Type | U |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Cermet | Shape | 80° Diamond |
| Coating | TiCN | Series/List # | ISOI |
| Grade | TN620 | Model No | 8843009 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.131
