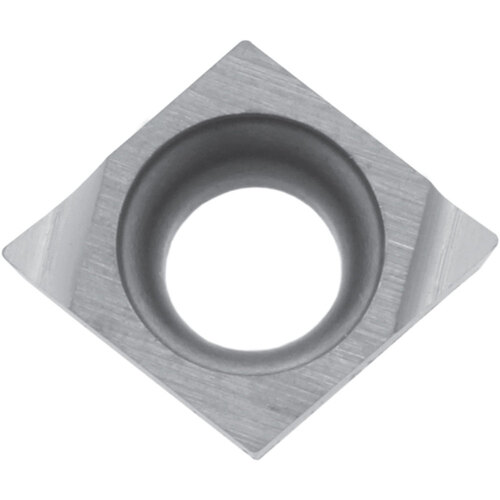

CCET 141102 F TN620, 0.004″ Corner Radius, 0.071″ Thick, 0.169″ Inscribed Circle, TiCN, 80 Degree Diamond, Turning Indexable Insert
Turning Insert; 80 Diamond × 0.169″ IC × 0.004″ Corner Radius ; TN620 ; Cermet ; TiCN
| Applicable Material | | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.0906″ |
| Application | Boring | External Turning | Facing | Internal Facing | Sub-Spindle | Tool Type | Turning Insert |
| Insert Style | CCET | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.004″ | Number of Cutting Edges | 2 |
| Insert Size | 141102 | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 0.071″ | Chip Breaker Type | F |
| Inscribed Circle Diameter (IC) | 0.169″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Cermet | Shape | 80° Diamond |
| Coating | TiCN | Series/List # | ISOI |
| Grade | TN620 | Model No | 8862075 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.032
