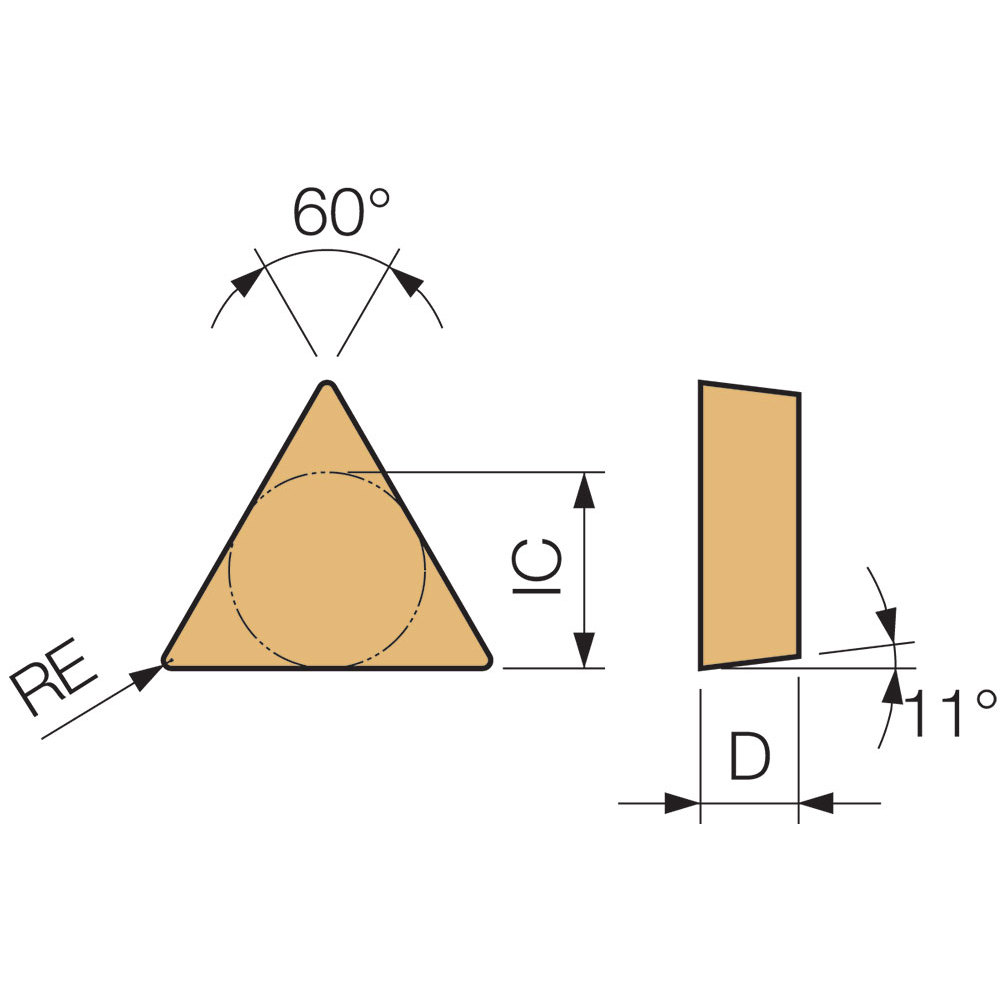

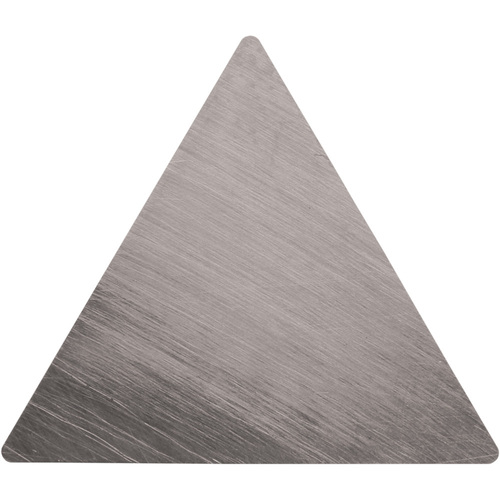

TPG 431 TN60, 1/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, TiCN/NbC, 60 Degree Triangle, Turning Indexable Insert
Turning Insert; 60 Triangle × 1/2″ IC × 1/64″ Corner Radius ; TN60 ; Cermet ; | TiCN | NbC |
| Applicable Material | | Super-Alloys / Titanium | | Grade | TN60 |
| Application | Boring | Chamfering | External Turning | Facing | Tool Type | Turning Insert |
| Insert Style | TPG | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 3 |
| Insert Size | 431 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | 60° Triangle |
| Cutting Edge Material | Cermet | Series/List # | ISOI |
| Coating | | TiCN | NbC | | Model No | 8803494 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.272
