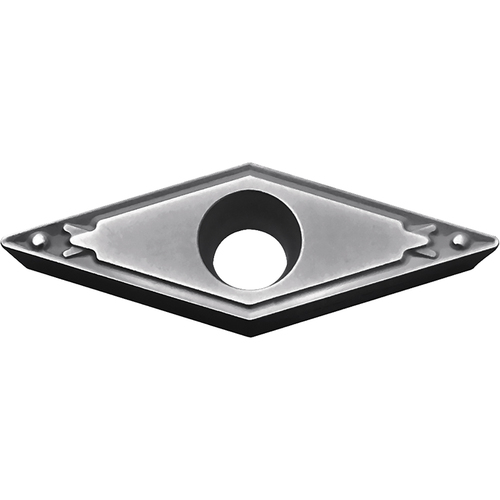

VCMT 151505 HQ TN60, 0.008″ Corner Radius, 3/32″ Thick, 3/16″ Inscribed Circle, TiCN/NbC, 35 Degree Diamond, Turning Indexable Insert
Turning Insert; 35 Diamond × 3/16″ IC × 0.008″ Corner Radius ; TN60 ; Cermet ; | TiCN | NbC |
| Applicable Material | | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.0906″ |
| Application | Back Boring | Copying | External Turning | Facing | Internal Facing | Profiling | Undercutting | Tool Type | Turning Insert |
| Insert Style | VCMT | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.008″ | Number of Cutting Edges | 2 |
| Insert Size | 151505 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/32″ | Chip Breaker Type | HQ |
| Inscribed Circle Diameter (IC) | 3/16″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 35 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Cermet | Shape | 35° Diamond |
| Coating | | TiCN | NbC | | Series/List # | ISOI |
| Grade | TN60 | Model No | 8808037 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.044
