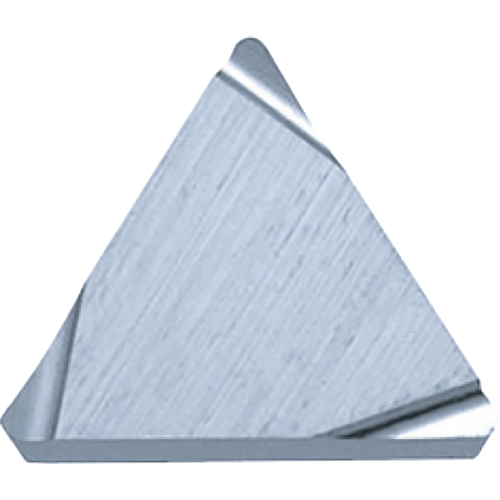

TPGR 181505 F TN60, 0.008″ Corner Radius, 3/32″ Thick, 7/32″ Inscribed Circle, TiCN/NbC, 60 Degree Triangle, Turning Indexable Insert
Turning Insert; 60 Triangle × 7/32″ IC × 0.008″ Corner Radius ; TN60 ; Cermet ; | TiCN | NbC |
| Applicable Material | | Super-Alloys / Titanium | | Tool Type | Turning Insert |
| Application | Back Boring | Boring | Copying | External Turning | Internal Facing | Clearance Angle Major (AN) | 11 Degrees |
| Insert Style | TPGR | Number of Cutting Edges | 3 |
| Corner Radius (RE) | 0.008″ | Cutting Direction (HAND) | Left Hand |
| Insert Size | 181505 | Chip Breaker Type | F |
| Insert Thickness (S) | 3/32″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 7/32″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | 60° Triangle |
| Cutting Edge Material | Cermet | Series/List # | ISOI |
| Coating | | TiCN | NbC | | Model No | 8815398 |
| Grade | TN60 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.044
