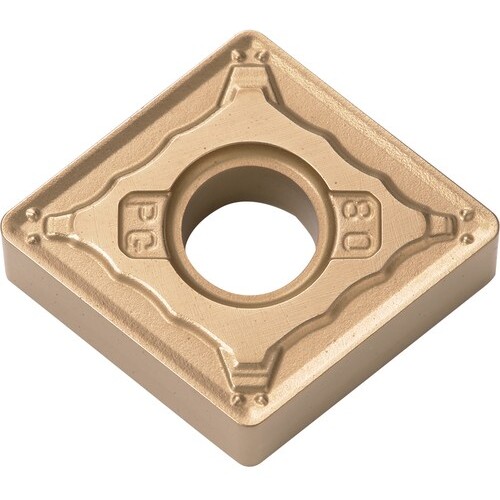

CNMG 431 PG CA025P, 1/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, TiCl2O3/TiN, 80 Degree Diamond, Turning Indexable Insert
Turning Insert; 80 Diamond × 1/2″ IC × 1/64″ Corner Radius ; CA025P ; Carbide ; | Al2O3 | TiN | TiCN |
| Applicable Material | | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.2032″ |
| Application | Boring | External Turning | Facing | Internal Facing | Tool Type | Turning Insert |
| Insert Style | CNMG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 4 |
| Insert Size | 431 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | PG |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Diamond |
| Coating | | Al2O3 | TiN | TiCN | | Series/List # | ISOI |
| Grade | CA025P | Model No | 8860106 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.239
