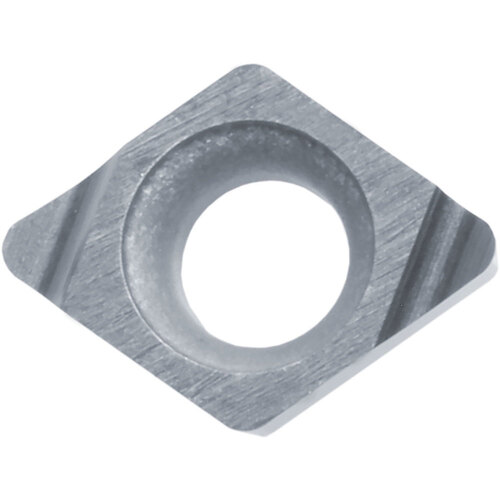

JCET 110902 FSF PR1725, 0.004″ Corner Radius, 0.055″ Thick, 0.138″ Inscribed Circle, MEGACOAT NANO PLUS, 70 Degree Diamond, Turning Indexable Insert
Turning Insert; 70 Diamond × 0.138″ IC × 0.004″ Corner Radius ; PR1725 ; Carbide ; MEGACOAT NANO PLUS
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.0748″ |
| Application | Back Boring | Boring | Internal Facing | Tool Type | Turning Insert |
| Insert Style | JCET | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.004″ | Number of Cutting Edges | 2 |
| Insert Size | 110902 | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 0.055″ | Chip Breaker Type | FSF |
| Inscribed Circle Diameter (IC) | 0.138″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 70 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 70° Diamond |
| Coating | MEGACOAT NANO PLUS | Series/List # | ISOI |
| Grade | PR1725 | Model No | 8865461 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.034
