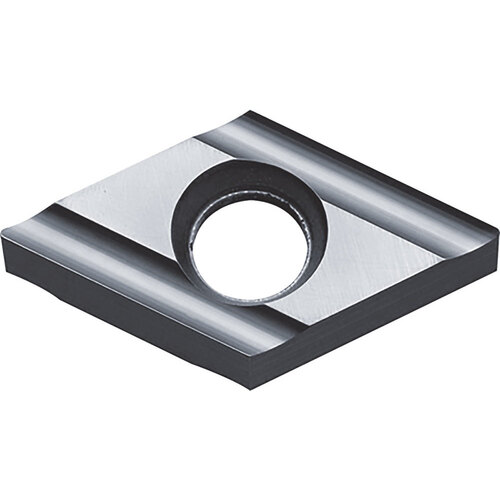

DNGU 22205 U PR1725, 0.008″ Corner Radius, 1/8″ Thick, 0.276″ Inscribed Circle, MEGACOAT NANO PLUS, 55 Degree Diamond, Turning Indexable Insert
Turning Insert; 55 Diamond × 0.276″ IC × 0.008″ Corner Radius ; PR1725 ; Carbide ; MEGACOAT NANO PLUS
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.1417″ |
| Application | Copying | External Turning | Tool Type | Turning Insert |
| Insert Style | DNGU | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 0.008″ | Number of Cutting Edges | 4 |
| Insert Size | 22205 | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 1/8″ | Chip Breaker Type | U |
| Inscribed Circle Diameter (IC) | 0.276″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 55 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 55° Diamond |
| Coating | MEGACOAT NANO PLUS | Series/List # | DSSS |
| Grade | PR1725 | Model No | 8865474 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.075
