TFBR07290020-D070 AC22

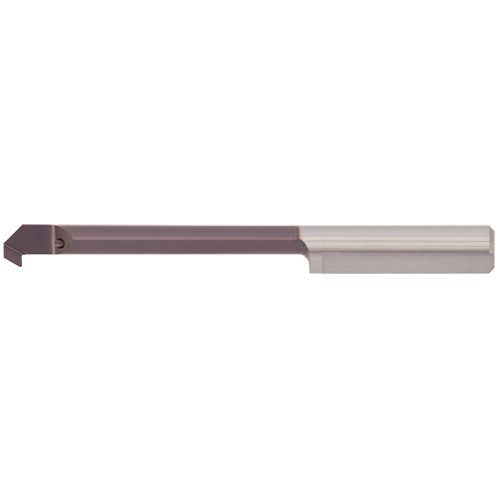

Boring Bar; 0.276″ Shank Dia. × 0.276″ Min Bore Dia. × 0.098″ Max Bore Depth × 1.772″ LF × 1.772″ OAL ; 0.008″ Corner Radius ; Carbide ; TiAlN
| Connection Diameter Machine Side (DCONMS) | 0.276″ | Front End Width (a) | 1/4″ |
| Minimum Bore Diameter (DMIN) | 0.276″ | Corner Radius (RE) | 0.008″ |
| Functional Length (LF) | 1.772″ | Cutting Depth Maximum (CDX) | 0.098″ |
| Head Length (LH) | 1.142″ | Functional Width (WF) | 0.11″ |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Coating | TiAlN | Cutting Edge Material | Carbide |
| Grade | AC22 | Measurement Type | Inch |
| Application | | Int Ext Grooving Flo Lock | Internal Profiling | | Overall Length (OAL) | 1.772″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | MicroCut Right Hand Carbide 7mm Bars with Internal Coolant for Back Boring | Country of Origin | Israel |
Shipping Info
Package Weight
0.002
