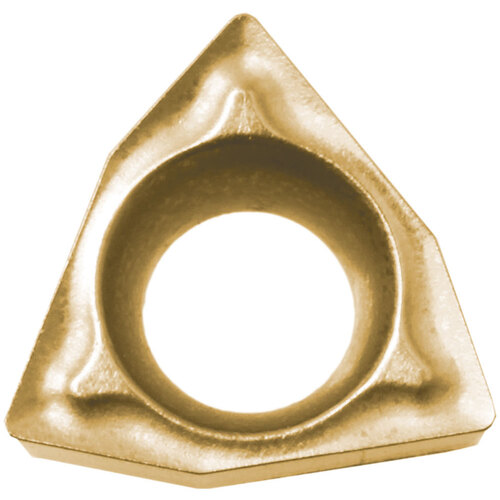

WBMT 15151 DP CA025P, 1/64″ Corner Radius, 3/32″ Thick, 3/16″ Inscribed Circle, TiCl2O3/TiN, 80 Degree Trigon, Turning Indexable Insert
Turning Insert; 80 Trigon × 3/16″ IC × 1/64″ Corner Radius ; CA025P ; Carbide ; | Al2O3 | TiN | TiCN |
| Applicable Material | | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.0906″ |
| Application | Boring | Internal Facing | Tool Type | Turning Insert |
| Insert Style | WBMT | Clearance Angle Major (AN) | 5 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 3 |
| Insert Size | 15151 | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 3/32″ | Chip Breaker Type | DP |
| Inscribed Circle Diameter (IC) | 3/16″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Trigon |
| Coating | | Al2O3 | TiN | TiCN | | Series/List # | ISOI |
| Grade | CA025P | Model No | 8861909 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.044
